Bioinspired shape controlled antiferromagnetic Co3O4 with prism like-anchored octahedron morphology: A facile green synthesis using Manihot esculenta Crantz extract

Abstract

Several strategies have been established for the synthesis of cobalt oxide nanoparticles with tunable sizes, morphologies and magnetic properties that involve the use of environmentally malignant organic solvent and high temperature conditions. Herein, we report on a facile green approach to synthesize antiferromagnetic Co₃O₄ mesoscale particles, defect free with prism liked-anchored octahedron morphology. The structural and magnetic properties of the as-synthesized Co₃O₄ nanoparticles were characterized using powder X-ray diffraction (XRD), scanning electron microscopy (SEM), energy dispersive analysis (EDAX), transmission electron microscopy (TEM), thermogravimetric analysis (TGA) coupled mass (MS), Fourier transform infrared spectroscopy (FT-IR) and vibrating sample magnetometer (VSM). The structural properties indicate that the as-synthesized mesostructured Co₃O₄ particles are pure crystallites of face-centred cubic phase Co₃O₄. The Co₃O₄ mesoparticles had bandgap of 2.86 and 2.54 eV and showed antiferromagnetic behaviour.

1

Introduction

The synthesis of nanosized or mesosized crystalline metal oxides is increasingly gaining research interest because of their adsorptive properties, large surface area, surface defects and fast diffusivities [1]. They exhibit novel material properties that are very different from those of their bulk counterparts due to their small sizes. It has been established that metal and metal oxides nanoparticles are capable of increasing chemical reaction activities due to the high ratio of surface atoms with free valences to the cluster of total atoms [2].

Cobalt (Co)-based nanomaterials have attracted numerous research interest because of their good electro-activity and low cost [2–4]. Cobalt is a transition metal and is capable of exhibiting variable oxidation states (Co²⁺, Co³⁺, Co⁴⁺). This multivalent state of cobalt provides it the ability to be present in various spin states in its oxide forms: Low, high as well as intermediate spin [5]. Co₃O₄ exists as a regular spinel structure with Co³⁺ in the octahedral sites and Co²⁺ in the tetrahedral site. This is attributable to the stability of the Co³⁺ (low spin d6) in the octahedral crystal field. The presence of octahedral and tetrahedral sites in Co₃O₄ results in two-sublattices in the crystal, hence in its bulk form, Co₃O₄ is anti-ferromagnetic with a Neel temperature of 33 K [6,7]. However, unlike the bulk form, Co₃O₄ particles exhibit a weak ferromagnetic behaviour. This is consistent with early predictions by Neel who suggested that at the nanoscale the reduced coordination of surface spins will result in a change in magnetic order making materials that are anti-ferromagnetic in their bulk form to become weakly ferromagnetic or superparamagnetic [6]. The effects of quantum confinement and surface effects and variable oxidation state of cobalt have made Co₃O₄ nanoparticles find immense applications in areas such as catalysis, intercalation compounds for energy storage in Li-ion batteries, gas sensors, electrochemical devices, pigments, high-temperature solar absorbers, magnetic materials among others [8,9].

Previous research work on Co₃O₄ focused on the synthesis of novel morphologies of the oxide and their applications. Some notable physical and chemical synthetic routes have been used in the synthesis of nanocrystalline Co₃O₄. Sol–gel synthesis, spray pyrolysis, coprecipitation, reduction, electrodeposition, chemical vapour deposition, thermal decomposition, solvothermal, microemulsion, pulsed laser deposition, sputtering, among others have been reported [8,10–15]. Though, these methods have shown varying degrees of successes in producing Co₃O₄ nanoparticles with good properties and some control over the obtained morphology, there are some drawbacks such as high cost, and dependence of particle growth kinetics on parameters such as pH, temperature, adsorption of surfactants [16]. Furthermore, some of the surfactants and stabilizers applied in the synthesis procedure tend to be hazardous with carcinogenic and cytotoxic effects making the synthesized nanomaterials unsuitable for clinical and biomedical applications. Consequently, current research interest is drifting towards green synthesis involving the use of environmentally friendly biological materials in the synthesis of nanomaterials (biosynthesis). Besides producing environmentally friendly nanostructures, biosynthetic routes provide control over the obtained morphology of particles by serving as templates for the hierarchical assembly of obtained nanostructures into complex micro, meso and macro entities [16]. Biosynthesis typically employs the use of bacteria, yeast, viruses, plants, fungus, actinomycetesetc. for the production of nanomaterials. Among these biomaterials, the use of plants provides the unique advantages of simplicity, scalability for production on a large scale. It is much faster since it does not require the complex multi-step processes of isolation, culture preparation, and culture maintenance typical in microbe-based synthesis [16]. Biosynthetic routes based on plants typically employ the phenolic, alkaloids, proteins, sugars, and terpenoids present in plants as stabilizers and reducing agents for the synthesis of the desired nanostructures. Initially, these chemicals aid the conversion of the metal precursor from their high oxidation states to zerovalent states, followed by nucleation. Growth occurs thereafter to yield nanoparticles which form aggregates based on the intermolecular interactions between the nanoparticles and the plant extracts to yield the most stable nanoparticles’ morphologies [16]. The pH, concentration (of both the metal precursors and plant extracts), temperature, reaction time are among the factors that control particle shape, sizeand morphology. Some notable research efforts involving the use of plant extracts in nanoparticles synthesis have been recorded [5,17].

Manihot esculenta Crantz is a woody shrub found in South America. It has been identified as a staple food for more than 500 million people in the tropics, many of whom are very poor [18]. It is considered a major source of industrial raw material and income for rural communities in most African Countries [19,20]. However, It contains anti-nutritional cyanogenic glucosides such as Linamarin and Lotaustralin The main organ of storage of the plant is the root and it has three distinct parts: bark (Periderm), Peel (Cortex) and Parenchyma. However, the consumption of Manihot esculenta Crantz roots and leaves are restricted by the cyanide content. The root Parenchyma has a cyanide content ranging from 10 to 500 mg cyanide equivalent/kg dry matter [21]. In this study, we report for the first time, the use of a natural extract of Manihtot esculenta Crantz Parenchyma as a chelating agent in the production of magnetic cobalt oxide (Co₃O₄) for multifunctional applications.

2

Experimental

2.1

Materials

Cobalt (CoCl₂, 98%) was purchased from May and Baker, Dagenham, England. Manihot esculenta Crantz was obtained from the plantation of Rubber Research Institute of Nigeria. It was extracted before use. Type 1, Ultrapure deionized water (18.2 MΩ cm, 25 °C), Merck Millipore (Germany) was used for preparing all solutions. The chemical(s) used were of AR grade and were used as received.

2.2

Biosynthesis process of cobalt oxides particles via Manihot esculenta Crantz extract

The tuberous root parenchyma was peeled, washed with de-ionized water, grated and dewatered. The extract was centrifuged to remove the starch. The supernatant obtained thereof was stored at 4 °C.

In a typical experiment, 0.02 mol CoCl₂ was dissolved in 30 mL of Manihot esculenta Crantz extract for stabilization to occur. The mixture was allowed to stand for 24 h under ambient conditions. The mixture formed a precipitate which was separated using an Eppendorf centrifuge and dried in a vacuum oven at 60 °C for 24 h. The dried powder was subsequently annealed at 500 °C for 2 h (Scheme 1).

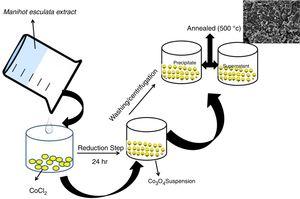

Scheme 1.

Proposed schematic for the as-synthesized Co₃O₄ mesoparticles.

2.3

Materials characterization

Surface morphology of the prepared powders was carried out using an Auriga high-resolution scanning electron microscope (HRSEM) coupled to an Oxford Instruments Xmax solid state silicon-drift detector (20 keV) used for carrying out the elemental analysis by energy dispersive X-ray spectroscopy (EDS). High-resolution transmission electron microscopy (HRTEM) was performed in a TECNAI F2 G20 HRTEM. The sample subjected to HRTEM was obtained by drop casting on a 400 mesh Cu grid and dried under vacuum at room temperature. Electron dispersive X-ray spectroscopy (EDS) was carried out using a specialized detector coupled to an OXFORD Instruments nano-scanning electron microscope. Perkin-Elmer spectrum one FT-IR spectrometer operating between 4000 and 400 cm⁻¹ was used to determine the vibration present in the cobalt oxide mesoparticles. A resolution of 4 cm⁻¹ was used and 64 scans were performed for each spectrum. The IR spectra were recorded as KBr pellets by subtracting the spectra of the KBr from cobalt oxide nanoparticles. Cryogenic Ltd, VSM was used to measure the magnetization field sweep loop of the samples, both at 5 K and 300 K. The apparatus is a closed-loop helium cooling system installed with aNbTi superconducting magnet. The field was orientated vertically and the measurement sequence was programmed such that the settling time of 30 sec (at each point) and an average of 20 measurements were taken per data point. This was done to have high resolution and accuracy of data. The frequency of the sample between the pick-up magnets was 20 Hz and this was controlled by an optical transducer.

3

Results and discussion

The X-ray diffraction pattern of the as-synthesized Co₃O₄ mesoparticles is shown in Fig. 1a. The XRD pattern indexed to (111), (220), (311), (222), (400), (511) (440) and (620) planes corresponding to the face centre cubic phase which matched with JCPDS No. 00-042-1467 with FD- 3m (227) space group and lattice constant, α = 8.08 A. No characteristic peaks of other impure phases were detected. This showed that the as-synthesized black powder is of high quality and highly crystalline. The XRD results further showed that the Co₃O₄ samples crystallized at a single phase but, they have different FWHM which means they have different particle sizes. The precipitated Co₃O₄ sample had higher FWHM than the supernatant as evaluated from the XRD peaks. This resulted in reduced particle size as seen from the calculated Scherrer's equation.

Fig. 1.

(a) X-ray diffraction pattern of the as-synthesized cobalt oxide particle annealed at 500 °C; (b) FT-IR spectra of the as-synthesized cobalt oxide particles.

The crystallite size of the synthesized Co₃O₄ was determined using the Scherrer's formula Eq. (1) to be ca. 36 nm while the lattice strain is 0.0032.

where k is constant (ca. 0.9); λ is the wavelength used in XRD (1.5418 Å); θ is the Bragg angle; β is the pure diffraction broadening of the peak at half-height that is, broadening due to the crystallite dimensions [22].

Comparison of the intensity of the XRD peaks from the two annealed samples showed that the particles obtained from the supernatant were more crystalline than those obtained from the supernatant. This was also in agreement with the result obtained from the selected area diffraction in Fig. 4a and b. The FTIR spectrum of the prepared Co₃O₄ samples is shown in Fig. 1b. Characteristic peaks were observed at 561 and 665 cm⁻¹. These correspond to Co–O bending mode of Co₃O₄[13]. There were also weak bands at 2922 cm⁻¹ and 1733 cm⁻¹. These could indicate the presence of O-H stretching vibrations from water vapour absorption during analysis.

Electron microscopy such as Scanning electron and Transmission electron microscopy (SEM and TEM) were used to evaluate the morphology of the Co₃O₄ mesoparticles. Fig. 2a and b shows the SEM while and Fig. 3c and d shows the TEM micrographs of the as-synthesized Co₃O₄ particles annealed at 500 °C. The particles were found to be agglomerated and the relative particle sizes could not be measured. This is attributed to nucleation and crystal growth at temperature [23]. Yin and Alivisatos reported that semiconducting nanoparticles growth by thermal decomposition method takes place in many stages [24]. Firstly, the molecules of the precursors decompose and convert into complex intermediate reportedly called monomers. When this monomer exceeds the critical value, nucleating is reached by clustering of the monomers. This enables crystalline particles to grow around the nucleation sites.

Fig. 2.

(a) SEM images of hierarchical cobalt oxide mesostructures showing fracture free octahedron-like shape. (b) SEM images of mesostructure cobalt oxide particles showing the layer–layer arrangement of the supernatant.

The crystallinity of the as-prepared sample was improved by the annealing process. This annealing process became necessary, because, the synthesis was a facile green approach (ambient temperature). After annealing, the samples become highly crystalline as seen from the selected area electron diffraction (SAED), Fig. 3a and b. It is believed that the particle size is controlled by the reaction temperature at the initial stage of nucleation. Thus, the reaction took place at room temperature and this caused the reacting precursor to change into amorphous cobalt oxide, hence giving rise to particles with large particle size distribution and agglomeration. This observation is similar to previous report [23] where it was noted that further annealing of amorphous cobalt oxide nanoparticles with broad particle size gives rise to asymmetric particle size growth of nanocrystals with large size distribution.

Fig. 3.

Characterization of Co₃O₄ mesoscale particles synthesized by a facile green approach using Manihot esculenta extract. Characterization of Co₃O₄ nanoparticles synthesized by a facile green approach using Manihot esculata extract. (a & b) SAED patterns, (c & d,) TEM images, (e & f) lattice fringes and (g & h) EDAX spectra of the as-synthesized Co₃O₄ mesooparticles (precipitate & supernatant) annealed @ 500 °C.

The corresponding selected area electron diffraction (SAED) pattern (Fig. 4a & b) showed spot diffraction pattern indicating that the Co₃O₄ mesocrystals are arranged more or less in the same crystallographic direction. This is one of the characteristic for crystal formation via solvent-mediated mechanism. The SAED patterns consist of well-defined rings which could be indexed with face-centred cubic Co₃O₄ phase. It is important to know that no reflection of other phases was found. This is further supported by the XRD result in Fig. 1a showing the pure and single phase of Co₃O₄ mesoscale particles with regular lattice fringes as shown in Fig. 3e and f. This is further supported by the EDAX spectra in Fig. 3g and h, showing peaks corresponding to Co, and O₂. A closer look at the octahedron crystal shown in Fig. 2a and b and the SAED pattern in Fig. 3a and b obviously shows evidence of the formation of polycrystals with well-defined diffraction spots.

Fig. 4.

SEM images of the assembled mesostructured cobalt oxide particles. a) Precipitate and b) Supernatant.

3.1

Self-assembled mesostructures

Previous studies have shown hierarchical nanostructured materials with basic physicochemical nature of their building blocks at different levels for high-tech applications [25]. The self-assembly of these complex architectures of cobalt particles from their dispersions at the nanoscale pivots on the competition between various forces like van der Waals, entropic, electrostatic, magnetic dipole-dipole, etc. [26,27]. In addition, the size and shape of their building blocks play a decisive role in the design of such architectures.

Recently, Li et al. [25], developed a solution based epitaxial growth method to prepare a novel crystal facet-based CeO₂ homo-junction consisting of hexahedron prism-anchored octahedron. Singh et al. reported on 2-dimensional magnetite nanocubes decorated as helical and belt superstructures on air-liquid interface formed during evaporation induced spontaneous self-assembly in the presence of an external magnetic field [28]. Murray and co-workers have demonstrated a dry-driven assembly process to fabricate large area ordering of nanocrystals without using external magnetic field [27,29]. In both studies, well-defined cubic-shaped nanoparticles were synthesized using hydrothermal method. Previous study also demonstrated the coexistence of square and hexagonally packed mesostructures arising due to structural diversity in iron oxide nanoparticles used under external magnetic field [30]. Notably, these reports were based on nanocrystals of a few nanometer sizes. Taking lead from these studies, we report for the first time, the facial green synthesis of antiferromagnetic Co₃O₄ mesoscale particles with hierarchical octahedron assemblies (Figs. 2 and 4). Here, the growth and formation of cobalt oxide mesostructures were turned during synthesis by the addition of chelating agent and this process was performed at ambient temperature (Scheme 1).

3.2

Magnetic and optical properties

The magnetic hysteresis curve at 5 K and 300 K is presented in Fig. 5a. The magnetization of the samples was measured as a function of the magnetic field (H,T) at 5 K and 300 K in the applied magnetic field sweeping between ±5 T. The magnetization curve looks antiferromagnetic. This antiferromagnetic behaviour exhibited by the as-synthesized Co₃O₄ mesoscale particles is similar to antiferromagnetic behaviour of the bulk Co₃O₄. These implies that an ideal bulk antiferromagnetic Co₃O₄ exhibits magnetic moment per particle which is equal to zero. Therefore, there could be complete compensation of sub-lattice spins [15,31]. This explains the mesoscale particles size.

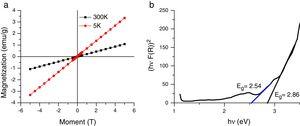

Fig. 5.

(a) Saturation magnetization; (b) band gap of Co₃O₄ mesoparticles particles.

This implies that Co₃O₄ particles have a normal cubic spinel structure with an antiferromagnetic exchange between ions which occupy the tetrahedral and the octahedral sites [32,33]. Hence, it has zero net magnetization due to complete compensation of sub-lattice magnetization

The optical spectra of the mesostructured Co₃O₄ particles were measured on an opaque substrate Fig. 5b.

The band gap of the as-synthesized Co₃O₄ mesoparticles was evaluated using Tauc relation[34].

where, h: Plank's constant, v: frequency of vibration, α: absorption coefficient, Eg: bandgap, A: proportional constant, n: denote the nature of the electronic transition of the sample which is responsible for adsorption. The values are ½, 3/2, 2 or 3. In this analysis, direct allowed electronic transition was used, therefore n was ½.

The acquired diffuse reflectance spectrum was converted to Kubelka–Munk function as the sample was measured on an opaque substrate [35]. Thus, the vertical axis was converted to F(R∞) quantity, which is proportional to absorption coefficient. Furthermore, α in the Tauc equation is replaced with (R∞), the actual relation used in the experiment becomes,

It is reported that bandgap varies with crystallite sizes, usually due to O²⁻–Co³⁺and O²–Co²⁺ charge transfer processes [36,37]. We obtained a band gap of 2.86 eV and 2.54 eV which was slightly higher and lower than the reported bulk value (Eg = 3.17 eV and 177 eV respectively). As earlier mentioned, increase in band gap can be attributed to quantum confinement and small grain size of the Co₃O₄ mesoparticles [14,38].

4

Conclusions

This study showed that mesostructured Co₃O₄ of high industrial potentials can be synthesized by a more environmentally friendly process using the extract of Manihot esculenta Crantz extract as a chelating/stabilizing agent. The as-synthesized mesostructured Co₃O₄ had a prism like-anchored octahedron morphology having antiferromagnetic behaviour and a band gap of 2.86 eV and 2.54 eV respectively. It is hoped that this facile green, more environment-friendly approach will be adopted in the synthesis of Co₃O₄ mesoparticles.
