Allergy to heparin: A new in vitro diagnostic technique
MR. Caballeroa, M. Fernández-Beníteza
a Departamento de Alergología e Inmunología Clínica, Clínica Universitaria, Facultad de Medicina, Universidad de Navarra, Pamplona. Spain.
This item has received
Article information
Full Text
Download PDF
Tables (6)

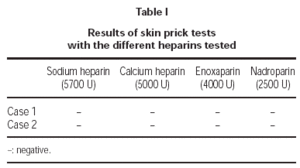

Table. I Results of skin prick tests with the different heparins tested
Table. II Results of intradermal tests
Table. III Results of patch tests
Table. IV Results of Basophil Activation Test (Percentage of basophils activated with the different heparins tested)
Figure 1. --Intradermal tests: positive result to Nadroparin in the immediate lecture.
Figure 2. --Example of positive case in BAT. In the upper right square the activated basophils expressing CD63 in basal determination, in response to anti IgE (positive control) and in response to 1/40 and 1/160 Nadroparin concentrations.
Show moreShow less
Introducción: Las reacciones alérgicas frente a heparina se encuentran poco descritas en la bibliografía por su baja prevalencia, desconocimiento y dificultad que entraña su diagnóstico, debido a la inexistencia de pruebas in vitro hasta el momento. Proponemos una nueva técnica, el test de activación de basófilos (TAB), para su diagnóstico in vitro. Material y resultados: Realizamos estudio in vivo e in vitro frente a heparina y derivados, en dos pacientes con urticaria aguda en relación a este fármaco. Los resultado fueron: prueba cutánea prick con HNF (heparina sódica y cálcica) y con HBPM (enoxaparina y nadroparina) con lectura inmediata negativa, 2) pruebas intradérmicas con HNF (heparina cálcica) y HBPM con lectura inmediata, a las 48 h y a las 96 h, resultando positiva para el paciente 1 tanto la lectura inmediata como a las 48 h, la paciente 2 presentó positividad frente la nadroparina en lectura inmediata 3) pruebas epicutáneas con HNF y HBPM con lectura a las 48 y 72 h positiva a nadroparina a las 48 h en la paciente 2. TAB: paciente 1 positivo para nadroparina y en la paciente 2 débilmente positivo para heparina sódica. Conclusiones: Consideramos el TAB como un método útil, seguro y fiable para el diagnóstico in vitro de alergia a heparina, pudiendo evitar la realización de pruebas de provocación y con riesgo para el paciente.
Palabras clave:
Allergy to heparin
Basophil Activation Test
In vitro diagnosis
Drug allergy
Introduction: Few descriptions of allergic reactions to heparin have been published, because these reactions are not well known, their prevalence is low and they are difficult to diagnose due to the lack of an in vitro test until now. We propose a new technique, the basophil activation test (BAT) for the diagnosis of these reactions. Methods and results: We performed in vivo and in vitro studies with heparin and its derivatives in two patients with heparin-induced acute urticaria. In both patients the results of prick tests with sodium and calcium heparin, enoxaparin and nadroparin with immediate reading were negative. Intradermal skin tests with immediate reading and reading at 48 and at 96 hours with calcium heparin, enoxaparin and nadroparin were positive in the immediate reading and after 48 hours in the first patient. The second patient showed positivity to nadroparin in the immediate reading. The same drugs were also tested using patch tests, with reading after 48 and 72 hours. The second patient showed positivity to nadroparin after 48 hours. The BAT was positive to enoxaparin in the first patient and revealed showed slight positivity to sodium heparin in the second patient. Conclusions: We consider the BAT to be a useful, safe and reliable test for the in vitro diagnosis of heparin allergy. This test avoids the use of provocation tests, which present a risk to the patient.
Alergia a heparina
Test de activación de basófilos
Diagnóstico in vitro
CD 63
Alergia a medicamentos
Full Text


Heparin is an anticoagulant drug discovered by Mc Lean in 19161, even though it was in 1938 when it was used for the first time2. Since then, it has been used very frequently as prevention and treatment of thromboembolism.

Firstly, the only existing heparin was the sodium one, which required intravenous administration, and only in the first 70s is the calcium heparin discovered, that allows its subcutaneous administration and its use as prophylactic treatment.

Non fractionated heparin (NFH) is a glycosaminoglycan of heterogeneous molecular weight (mean 15000 daltons) that is obtained and purified from the bovine lung or the intestinal mucosa of the pig. It can be administered by intravenous or subcutaneous via (intramuscular via must be avoided), and it is commercialised in two forms, as sodium salt (iv) or as calcium heparinate (sc).

In 1980, by means of fraction techniques (enzymatic, chemical or physicochemical), purification and synthesis, more homogeneous preparations are obtained from low molecular weight polymers (mean weight 5000 daltons), denominated fractionated or low molecular weight heparins (LMWH), that alike the NFH potentiate the inhibitor effect of the antithrombine III. They present some advantages compared to NFH, such as a greater availability, longer semi-life, and a more efficient and safer antithrombotic effect.

The following belong to that group:

­ Bemiparin (Hibor®).

­ Dalteparin (Boxol®, Fragmin®).

­ Enoxaparin (Clexane®, Decipar®).

­ Nadroparin (Fraxiparina®).

­ Tinzaparin (Innohep®).

Both the non fractionated heparins and the low molecular weight ones, although these last ones not as frequently, produce adverse reactions amply studied such as hemorrhage or osteoporosis when administered for longer than six months, and thrombocytopenia.

Nevertheless, there are some adverse reactions not as frequent, such as the allergic reactions. These have been known since 1950 but their diagnosis is still a challenge due to the polytreatment often followed by the patients, the scarce reliability of the in vivo diagnostic techniques, and the lack of safe in vitro tests that could support the diagnosis and avoid risks to the patients with anaphylactic reaction.

In this work, we describe two patients whose allergy to heparin was proven by a new in vitro diagnostic technique: the basophil activation test (BAT). The usefulness of this technique in the in vitro diagnosis of drug allergy and other allergens has been previously confirmed3-5.


Case report 1

18 year old woman, with background of multiple surgeries due to congenital anomaly of short femur. During the last post-surgery and after eight days of treatment with subcutaneous enoxaparin and metamizol, two hours after the last dose of subcutaneous enoxaparin the patient presents generalised pruritic erythematous infiltrated plaques and palpebral angioedema. She went to the Emergency Service, where she was administered intravenous corticosteroids and antihistamines, presenting a good response.

After consulting with the Orthopedic Surgery Department, the patient was indicated to immediately stop the administration of heparin. In the anamnesis, no administration of any other drug in the previous six hours or any other triggering factor was referred by the patient, who tolerated metamizol subsequently.

Case report 2

Twenty-seven year old woman, with personal background of seasonal allergic rhinoconjunctivitis with sensitisation to grass pollen, under treatment with subcutaneous enoxaparin after surgery of disk hernia. The patient came to consultation referring, on the seventh day under treatment with enoxaparin, itching in popliteal area, buttocks and scalp. She continued treatment until six days later, when approximately 15 minutes after administration of enoxaparin, she started with dizziness and sweating that lasted one hour and three hours later, erythematous infiltrated plaques in upper limbs, back and anterior part of the tights. The patient did not present any other symptoms, and had a good evolution once the treatment was stopped, requiring no medication.

After a recovering period going from three to four weeks, the patients underwent the following in vivo allergological study:

1. Skin Prick tests with NFH (sodium heparin and calcium heparin) and with LMWH (enoxaparin and nadroparin).

2. Intradermal tests with NFH (calcium heparin) and LMWH (enoxaparin and nadroparin).

3. Patch tests with NFH (sodium heparin and calcium heparin), and with LMWH (enoxaparin and nadroparin).

Blood test and erythrocyte sedimentation rate was also performed.

Concerning the in vitro allergologic study, the following tests were performed: Total serum IgE and Basophil Activation Test (BAT). This test was performed following the technique previously described3,4. After in vitro allergen-specific stimulation, basophils become activated and express CD63. This can be detected by flow cytometry using monoclonal antibodies, like anti-CD63-PE and anti IgE-FITC. In the first case nadroparin was used at two dilutions (1/40 and 1/160), and in the second case calcium heparin and enoxaparin was used at the same concentrations.


In the allergologic study performed, we found (tables I-IV):

1. Prick tests with sodium and calcium heparin, enoxaparin and nadroparin, were negative in both cases.

2. Intradermal skin tests with immediate lecture, at 48 and at 96 hours, with calcium heparin, enoxaparin and nadroparin, were positive in the immediate lecture and after 48 hours for the first patient. In the second case, we only obtained a positivity to nadroparin in the immediate lecture (fig. 1).

Figure 1.--Intradermal tests: positive result to Nadroparin in the immediate lecture.

3. The same drugs were also tested by patch tests, with lecture after 48 and 72 hours, finding only a positivity after 48 hours to nadroparin in the second patient.

4. Concerning the in vitro study, total serum IgE was within normal values (60.9 kU/l and 29.8 kU/l respectively).

5. Basophil Activation Test was performed with nadroparin and enoxaparin in the first case, being positive to enoxaparin, and with sodium heparin and enoxaparin in the second case, being positive for sodium heparin (fig. 2).

Figure 2.--Example of positive case in BAT. In the upper right square the activated basophils expressing CD63 in basal determination, in response to anti IgE (positive control) and in response to 1/40 and 1/160 Nadroparin concentrations.


The first description of a case of allergy to heparin was done by Chernoff in 19516. From that moment, there are several works in the literature, such as the one by Serradimigni in 19687 that describes three cases of allergy to heparin, and the one by Curry in 19736. Subsequently, more cases have been published, generally only one case is described in each publication, because this is a very rare pathology.

In the literature, we can find hypersensitivity reactions to heparin type I, II, III and IV according to the classification by Gell and Coombs8, even though the type IV is the most frequent and documented one.

Concerning the type I or immediate hypersensitivity reactions, in 1975 Dukes described a case of allergic conjunctivitis as reaction to non fractionated heparin. In 1977 Savas et al9 described an elderly woman who developed severe bronchospasm three hours after starting treatment with intravenous heparin.

The cases of anaphylactic shock are very rare. The first one was described by Coon and Willis in 196610. It is not possible to anticipate the patients who could develop a shock, although it is postulated that patients with localised hemorrhagic necrosis due to heparin, could trigger anaphylactic reactions.

Regarding the type II or cytotoxic reactions, in a study performed by Harenberg et al11, the association between thrombocytopenia, thombosis and heparin induced antibodies (IgG) was observed in 3 % of the patients who followed post-surgery treatment. They also observed that one-fourth of patients with skin reaction triggered by heparin and with IgG antibodies developed complications such as lung thromboembolism or skin necrosis. This is why the authors advise that skin test to this drug should be performed to those patients whose delayed skin reaction could be heparin-induced, and eliminate the drug in the future if the study was positive.

As for type III reactions, the vasculitis have been described12. Lefebvre et al13 described an aged woman who developed skin necrosis areas after administration of subcutaneous heparin on the lipodystrophic abdominal area due to insulin subcutaneous injections, showing the biopsy a leukocytoclastic vasculitis.

The type IV or delayed reactions are the most prevalent and documented in the literature, being more frequent in adult women. The reactions usually take place 2 to 4 days after heparin administration. Among the skin reactions, persistent erithema, urticaria and/or exfoliative dermatitis are included. Up to now, the performance of intradermal or patch tests was considered important for this group of patients in order to confirm the etiological agent, since there was no other kind of test for their in vitro diagnosis.

Several studies in the literature state that skin tests confirm and detect cross reactivity between NFH, LMWH and heparinoides, being the intradermal tests the most reliable diagnostic tool14, even though the sensitivity and the specificity of these tests is yet to be determined.

In some cases, provocation tests must be performed in order to reach a final diagnosis15, in spite of being this kind of tests quite risky for the patient. On the light of our results, we suggest using this new in vitro diagnostic technique, the Basophil Activation Test (BAT), in the study of possible sensitisation to heparins. In some cases of shock, it is advisable to perform the BAT before the skin test, in order to avoid the risk it bears for the patient, and always before the provocation tests.

McLean J..
The discovery of heparin..
Circulation, 19 (1959), pp. 75-8
Mueller RL, Scheidt S..
History of drugs for thrombotic disease. Discovery, development, and directions for the future..
Circulation, 89 (1994), pp. 432-49
Allergen-induced basophil activation: CD63 cell expression detected by flow cytometry in patients allergic to Dermatophagoides pteronyssinus and Lollium perenne. Clin Exp All 2001;(31):1007-13.
ML Sanz, PM Gambo.a, I Antépar.a, C Uasu.f, L Vil.a, C García-Avilé.s, M Chazo.t, AL de Weck..
Flow cytometric basophil activation test by detection of CD63 expression in patients with immediate-type reactions to betalactam antibiotics..
Clin Exp All, 32 (2002), pp. 277-86
ML Sanz, PM Gambo.a, C García-Avilé.s, L Vil.a, I Diéguez, I Antépar.a, AL de Weck..
Flow-Cytometric Cellular Allergen Stimulation Test in Latex Allergy..
Int Arch Allergy Immunol, 130 (2003), pp. 33-9
Postoperative Thromboembolism. Frequency, Etiology, Prophylaxis. Springer-Verlag, Berlin Heidelberg 1983;111.
Allergy to heparin: 3 cases. Ann Cardiol Angeiol (Paris). 1968;17(4):343-6.
Classification of allergic reactions responsible for clinical hypersensitivity and disease. In: Clinical Aspects of Immunology, 3rd Edition. Ed. PGH Gell, RRA Coombs and PJL Lachmann. Blackwell Scientific Publications, pp. 761-81.
Savas MC, Benekli M, Akcav A, Birdane A..
Heparin-associated refractory bronchospasm..
Ann Pharmacother, 31 (1997), pp. 253
Some side effects of heparin, heparinoids, and their antagonists. Clin Pharmacol Ther. 1966; 7(3):379-98.
Harenberg J, Huhle G, Wang L, Hoffmann U, Bayerl C, Kerowgan M..
Association of heparin-induced skin lesions, intracutaneous tests, and heparin-induced IgG..
Allergy, 54 (1999), pp. 473-7
Wutschert R, Piletta P, Bounameaux H..
Adverse skin reactions to low molecular weight heparins: frequency, management and prevention..
Drug Saf, 20 (1999), pp. 515-25
Lefebvre I, Delaporte E, Dejobert Y, Catteau B, Piette F, Bergoend H..
Enoxaparin-induced cutaneous necrosis localized on insulin lipodystrophies..
Ann Dermatol Venereol, 124 (1997), pp. 397-400
Pecquet C, Vermeulen C, Natta P, Sauva C, Mathelier-Fusade P, Leynadier F..
The utility of skin tests in with a suspected cutaneous reaction to heparin..
JACI, 109 (2002), pp. 431
Delayed-type hypersensitivity to subcutaneous enoxaparin. Allergy 1998; 53(10):999-1003.
